Product Lines
High Efficiency Comfort Systems

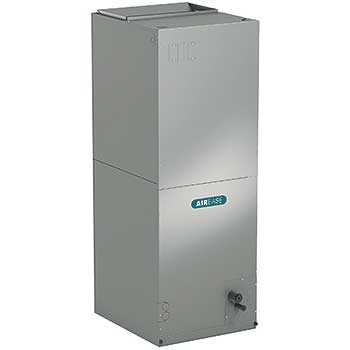

BCE4S Pro Series Variable Speed Air Handler
Control your home’s temperature' humidity levels' noise levels and energy usage by choosing the high-performance BCE4S air handler. Using variable speed technology' the BCE4S delivers more even temperatures while consuming 2/3rds less energy than single speed air handlers. Pair the BCE4S with the Comfort Sync thermostat and you can control your heating and cooling' so you’ll always come home to your perfect temperature.
- Pro Series Pair this model with a Pro Series™ heat pump or air conditioner and a Comfort Sync thermostat for optimum performance. With the Pro Series you’re in control of every aspect of your home’s climate as well as your energy costs.
- Microban Protection Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells' disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce.
- Variable Speed Fan Motor By changing the speed of its airflow during start-up' your air handler can adjust humidity levels and create more even temperatures throughout your home' while enhancing efficiency and reducing operating noise.
- Comfort Sync Thermostat When you pair this model with the Comfort Sync thermostat' the system will continuously monitor internal components for optimum performance. When Comfort Sync detects that repairs and regular maintenance are needed' it alerts you or your dealer instantly via email.
MODEL | Tons | Clg. Cap. MBtuH | CFM Max | Dimensions HxWxD | Weight Lbs. |
---|---|---|---|---|---|
BCE4M24S | 2.0 | 24.0 | 1130 | 45.25x16.25x20.6 | 117 |
BCE4M30S | 2.5 | 30.0 | 1320 | 49.25x21.25x20.6 | 143 |
BCE4M36S | 3.0 | 36.0 | 1545 | 51x21.24x22.6 | 150 |
BCE4M48S | 4.0 | 48.0 | 2145 | 58.5x21.25x24.9 | 189 |
BCE4M60S | 5.0 | 60.0 | 2145 | 58.5x21.25x24.9 | 189 |
Warranty Information
- All Parts for 120 months -
Available Documents
- View Document (Consumer Literature, Color)
- View Document (Specification Sheet, Technical Information)
