Product Lines

High Efficiency Comfort Systems

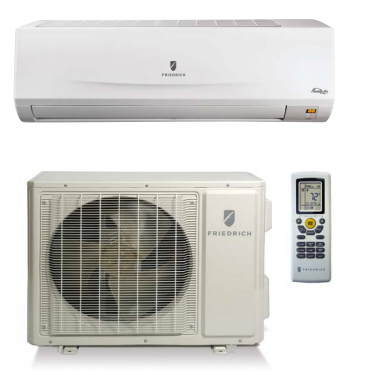

J Series 25 SEER Single Zone Mini Split Heat Pumps

Incredibly quiet sleek and energy-efficient ductless split systems are the smart way to cool rooms without ductwork—even those without windows or exterior walls.

  • Inverter Technology Inverter technology allows each system to adjust capacity and cooling output to provide only the amount of cooling needed at a given time.
  • Optimized Airflow The indoor units 4 way air swing quickly disperses cool air to all four corners of the room to provide comfort throughout the room within a few minutes. The Surge Air feature moves air at an even higher speed for rapid cooling
  • DiamonGold Advanced Corrosion Protection Protects the outdoor coil against deterioration and extends the life of the unit especially in harsh coastal environments.
  • Low Vibration Twin Rotary Compressor Friedrich's twin-rotary compressor has a unique design that reduces vibration for lower sound levels outdoors.
  • Ultra Quiet An electronically controlled cross-flow fan creates an ultra quiet' yet powerful air flow into the room.
  • Optimum Air Flow Air is directed downward in heating mode and angled upward during cooling mode so the room feels more comfortable' faster.
MODELTypeUnit Match or Number of ZonesClg Cap MBtuHSEERHtg Cap MBtuHHSPFRefrigerant ConnectionsDimensions HxWxDWeight
MWH12Y3JIndoor Wall MRH12Y3J 12.0 25.0 13.6 11.0 1/4-3/8 37.4x11.6x9.25 25
MRH12Y3JOutdoor MRH12Y3J 12.0 25.0 13.6 11.0 1/4-3/8 25.9x34.3x12.6 95
MR18Y3JOutdoor MW18Y3J 17.0 18.0 20.2 9.7 1/2-1/2 25.9x34.3x12.6 97
MR24Y3JOutdoor MW24Y3J 22.0 21.0 27.0 11.0 3/8-5/8 31.5x34.3x12.6 125
MR30Y3JOutdoor MW30Y3J 30.0 18.5 32.0 10.0 3/8-5/8 31.5X34.3X12.6 125
MW36Y3JIndoor Wall MR36Y3J 0.0 0.0 0.0 0.0 3/8-5/8 13.6X46.9X10.3 40
MR36Y3JOutdoor MW36Y3J 33.0 16.5 35.2 10.0 3/8-5/8 31.5X34.3X12.6 125
MW09Y3JIndoor Wall MR09Y3J 9.0 21.5 10.8 11.0 1/4-3/8 11.25x35.25x8.25 23
MW12Y3JIndoor Wall MR12Y3J 11.2 21.5 13.3 11.0 1/4-3/8 11.25x35.25x8.25 23
MW18Y3JIndoor Wall MW18Y3J 17.0 18.0 20.2 9.7 1/4-1/2 12.9x40.6x9.6 31
MR09Y3JOutdoor MW09Y3J 9.0 21.5 10.8 11.0 1/4-3/8 21.3x30.6x11.3 78
MR12Y3JOutdoor MW12Y3J 11.2 21.5 13.3 11.0 1/4-3/8 21.3x30.6x11.3 78
MW30Y3JIndoor Wall MW30Y3J 30.0 18.5 32.0 10.0 3/8-5/8 13.6X46.9X10.3 40
MW24Y3JIndoor Wall MR24Y3J 22.0 21.0 27.0 11.0 3/8-5/8 13.6X46.9X10.3 40

Warranty Information

  • All Parts for 84 months -
  • Compressor for 60 months -

Available Documents

  • 348-11314.pdf (Full Line 2014, Customer Information, Consumer Literature)
  • 348-29033.pdf (Color, Consumer Literature, Specification Sheet)
